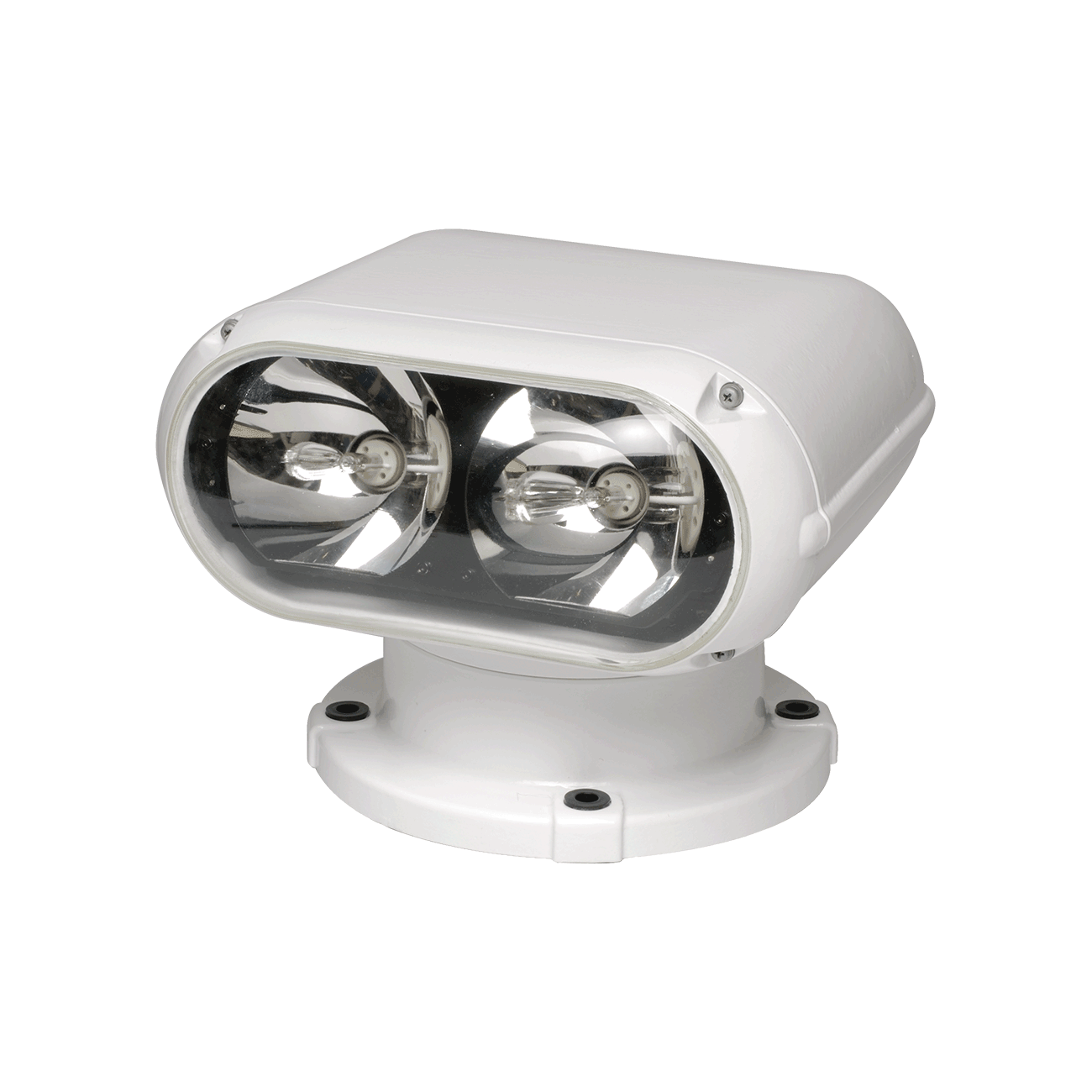

Overview

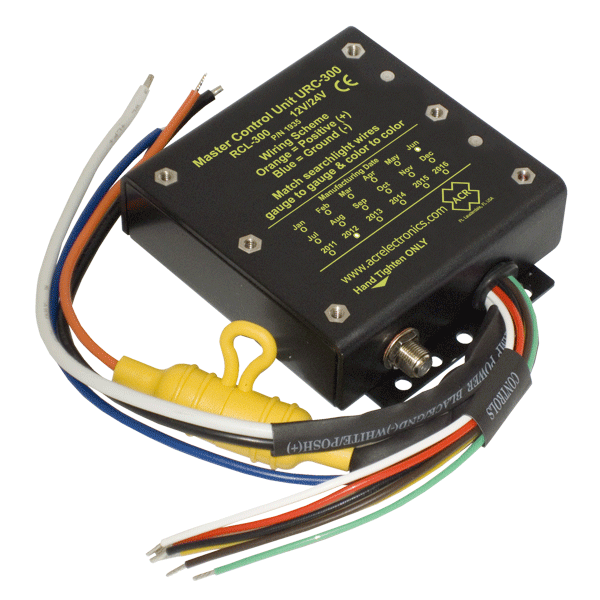

It’s gasketed and finished to stand up to the marine environment, and all functions can be operated using the supplied Point Pad™ and Master Controller (up to three remote controllers may be installed).
Tags: searchlights, searchlight, RCL Searchlight, RCL 300, boat searchlight, marine searchlight, marine searchlights, acr searchlight, 1933, P/N 1933
Features
- Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather

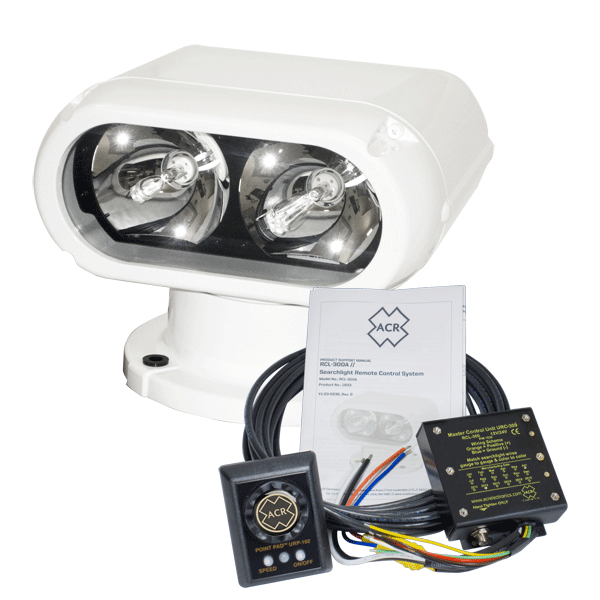

- Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
- Rugged triple-primed and sealed, marine grade aluminum housing
- XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
- * Twin 35W, Metal Halide HID lamps provide over 500k CD each and 1 million effective CD when combined.
Specifications
| Weight | 16 lbs |
| Dimensions | 17.75 × 21.5 × 15.5 in |
Additional specifications
| ACR Product Number | 1933 |
| Size | 12 x 13 x 9.3” (31 x 33 x 23.5 cm) |
| Weight | 36 lbs (16.39 kg) |
| Material | Marine grade cast aluminum, tempered glass |
| Color | White |
| Operation | Remote controlled Point Pad™ |
| Beam Angle | 6° vertical, 6° horizontal |
| Elevation Angle | 15° up, 30° down |
| Rotation | 360° continuous |
| Rotation Speed | Fast 30° per second, Slow 10° per second |
| Elevation Speed | 3° per second |
| Lamp | Twin 35W metal halide lamps 1,000 hours operating life |
| Input Voltage | 12V-24VDC Amp Draw |
| Start Up | 25A @12V, Running 8A @ 12V |
| Carton Dimensions | 20.5” x 14.25” x 19.25” |
| Carton Weight | 40 lbs |
| Footprint Diameter (without pedestal) | 9” (23cm) |
Documentation
- WARNING: PROP 65
- 1933_RL-300_Searchlights_spec_sheetLoRes
- RLC-300_Mounting_Template_-_Y1-03-0232-1_RevB
- Manual_RCL-300A_Y1-03-0232G
